When an earthquake begins, every second matters. An earthquake early warning system can provide those valuable seconds by detecting seismic activity and rapidly activating warning and emergency response systems.

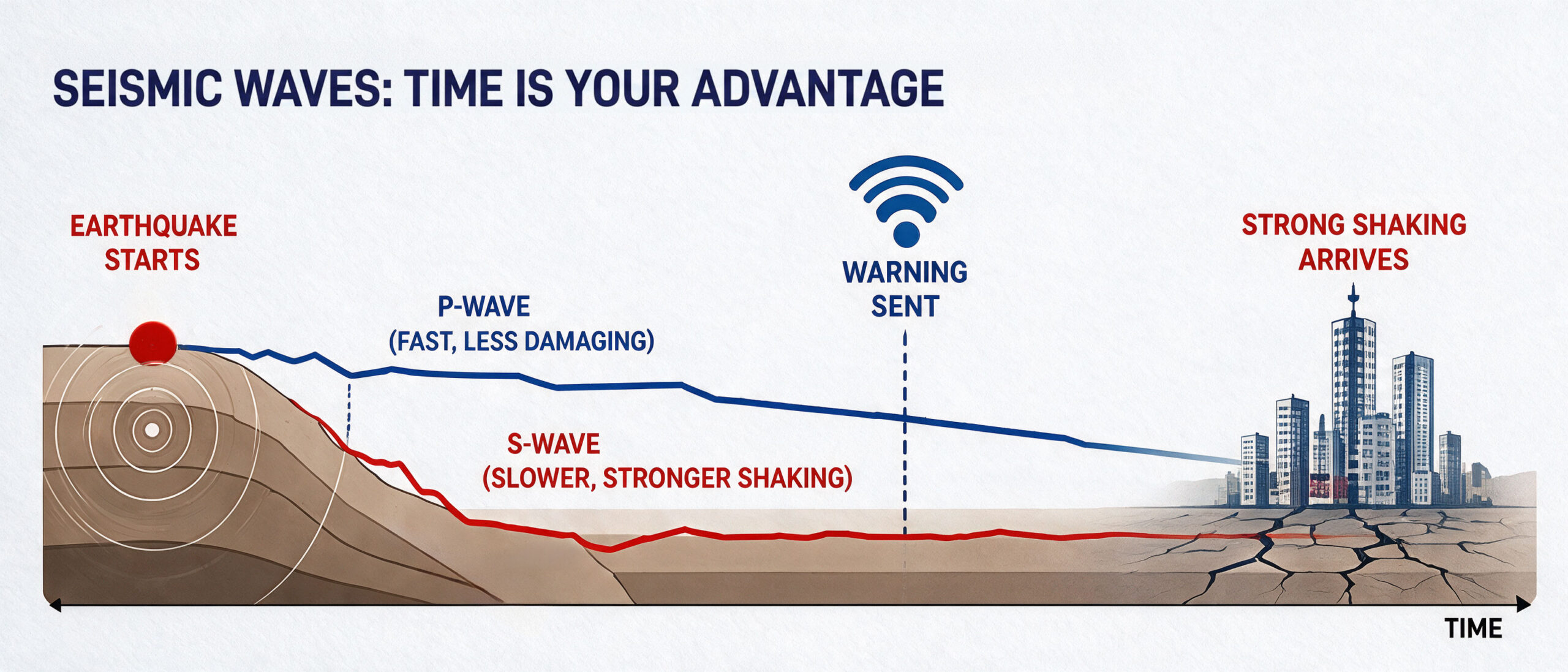

It is important to understand that earthquake early warning does not predict earthquakes. The earthquake has already started when the system reacts. The warning is possible because different seismic waves travel at different speeds, while digital information can be transmitted much faster.
The first waves to arrive are P-waves, which are generally less damaging than the stronger shaking that follows. Seismic monitoring equipment can detect these first signals, evaluate the event and send an alert before stronger ground motion reaches a protected location. Depending on the distance from the earthquake source and the system architecture, the available warning time may range from only a few seconds to a longer period. Areas very close to the epicenter may receive little or no advance warning.

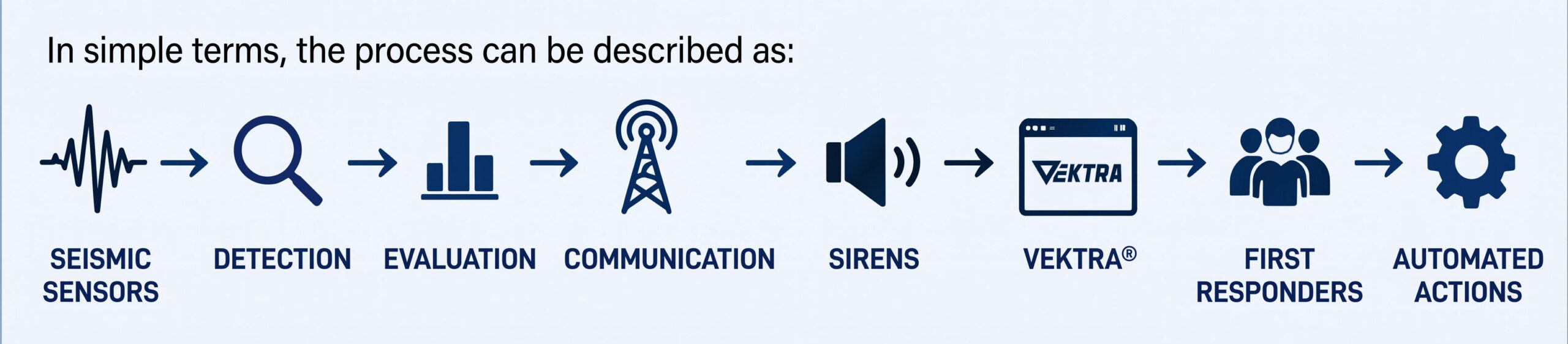

In simple terms, the process can be described as:
seismic sensors → detection → evaluation → communication → sirens → Vektra® → first responders → automated actions
How Seismic Sensors Detect an Earthquake
The warning process starts with seismic monitoring equipment. Seismometers and strong-motion sensors measure ground movement and convert it into data that can be analyzed automatically. A seismometer works using the principle of inertia. While the instrument moves with the ground, an internal mass reacts differently to that movement. This difference can be converted into an electrical signal representing ground motion.
Modern seismic monitoring systems can identify seismic signals and evaluate whether predefined warning conditions have been reached. Regional systems may use data from several monitoring stations to estimate the location and magnitude of an earthquake or the expected level of shaking. Local systems can also operate using predefined thresholds or alarm outputs.
Telegrafia’s earthquake early warning solution combines seismic monitoring with compatible third-party seismic sensors, connecting earthquake detection directly with public warning, notification and automated emergency response. So our main role begins where this detection layer connects to the warning infrastructure. Once a seismic monitoring system generates an alarm, the information can be transmitted to electronic sirens, control software, emergency personnel and connected technological systems.
From Earthquake Detection to Public Warning
The biggest challenge in earthquake early warning is speed. Every unnecessary delay reduces the reaction time available before stronger shaking arrives.
In a simple local installation, seismic monitoring equipment can be connected directly to an electronic siren. When the configured alarm condition is reached, the siren can activate automatically. For larger warning networks, the detection system can be integrated with the Vektra® software platform.
Vektra® SCADA can monitor information from connected systems and trigger predefined processes when critical conditions occur. Vektra® Warning manages electronic warning devices and can automatically activate predefined warning scenarios. At the same time, Vektra® Notification can inform responsible personnel and first responders through channels such as SMS or voice calls.
This means that one detected seismic event can initiate several actions almost simultaneously: electronic sirens can warn the population, emergency services can receive notifications and predefined emergency procedures can begin automatically. Electronic sirens can provide an acoustic warning signal and, depending on the system configuration, also broadcast pre-recorded messages, text-to-speech announcements or live voice instructions. The result is a coordinated process in which information moves rapidly from seismic detection to public warning and emergency response.
Automated Earthquake Warning and Emergency Response

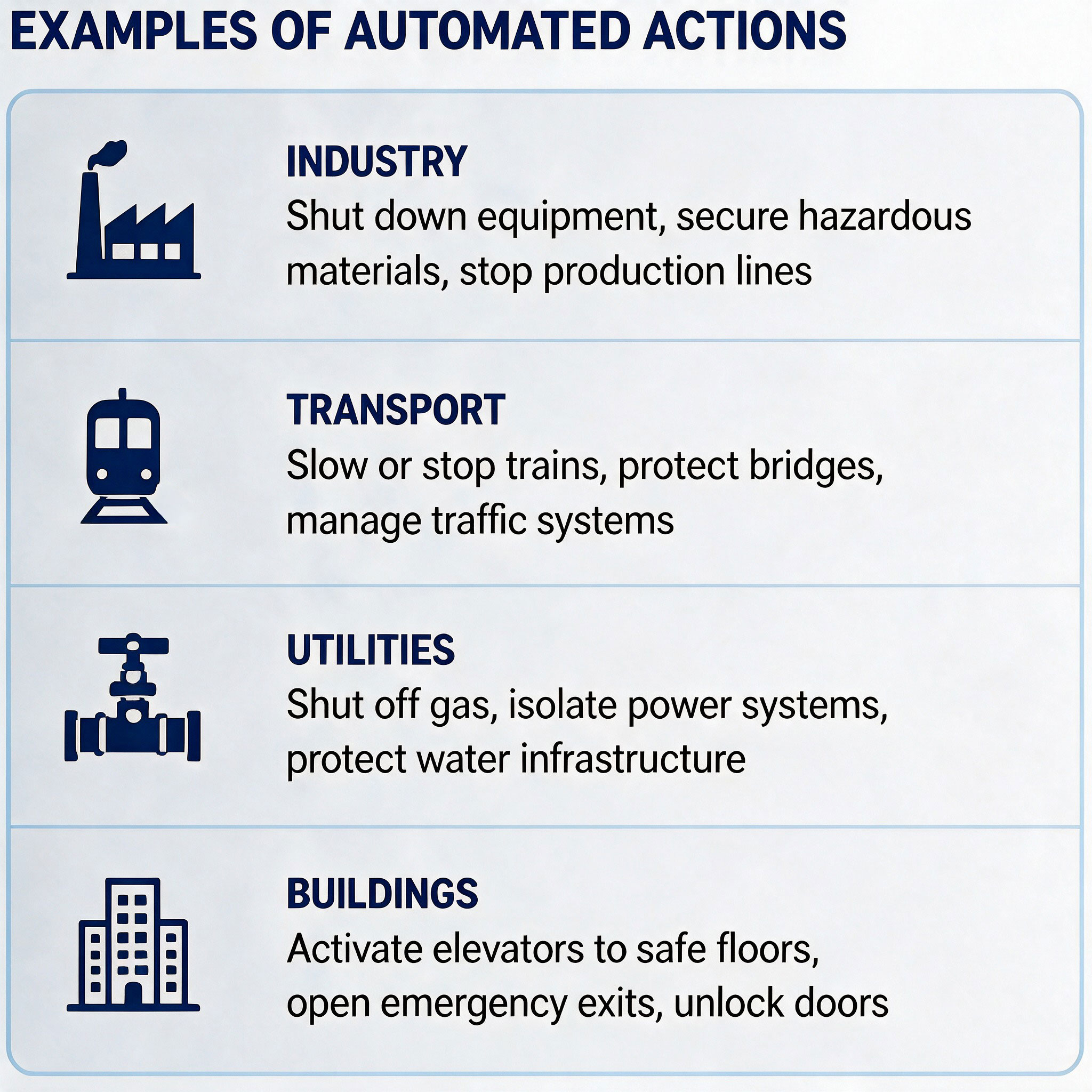

An integrated earthquake warning system can also trigger actions beyond public warning. When connected to other technological systems, a detected earthquake can automatically initiate predefined protective procedures. For example, a SCADA-based system can be connected to infrastructure so that a critical event triggers an action such as shutting off a gas supply.
Similar principles are used in earthquake early warning systems worldwide to protect industrial equipment, transport systems and critical infrastructure. Automated systems can react immediately, without waiting for a person to assess the situation manually. This is especially valuable because earthquake early warning may provide only a few seconds of reaction time.

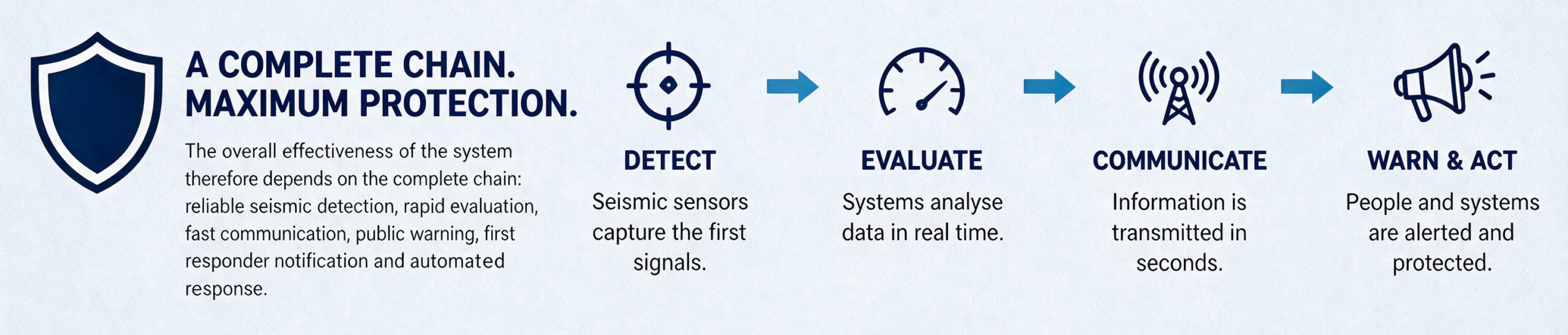

The overall effectiveness of the system therefore depends on the complete chain: reliable seismic detection, rapid evaluation, fast communication, public warning, first responder notification and automated response.
Third-party seismic sensors provide the detection layer. Telegrafia’s warning infrastructure connects this information with monitoring station, electronic sirens, Vektra® applications, emergency personnel and other technological systems.
The objective is not to predict when an earthquake will happen. It is to detect an earthquake that has already started and use the available seconds before strong shaking arrives as effectively as possible.
FAQ
1. Can the system be integrated with existing seismic monitoring or SCADA systems?
Yes. Telegrafia warning systems can be integrated with existing monitoring and SCADA infrastructure. Depending on the project, interfaces and protocols such as Modbus, OPC or SNMP can be used.
2. Can earthquake warnings be activated automatically?
Yes. An alarm signal from seismic monitoring equipment can automatically activate electronic sirens or trigger predefined warning scenarios through Vektra® applications.
3. Can the system operate during a power or communication failure?
Yes. Telegrafia electronic sirens have backup batteries and can operate autonomously if communication with the control center is unavailable.
4. Can the system trigger other emergency actions automatically?
Yes. When integrated with other technological or SCADA systems, a detected seismic event can trigger predefined actions such as notifying emergency personnel or shutting off a gas supply.
5. Does Telegrafia provide seismic sensors for earthquake detection?
Telegrafia focuses primarily on warning, control and notification infrastructure. Earthquake detection can be provided by compatible third-party seismic sensors or an existing seismic monitoring system.
